Anti Slip Platform Welded Steel Bar Grating 1000x6000mm Corrosion
Protection
Hot-Dip Galvanized Port Platform Anti-Skid Insert Steel Grating
Plate

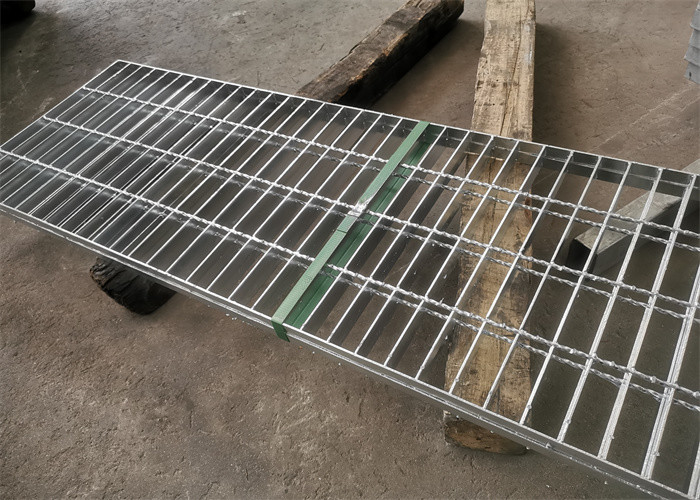

Steel Grating Plate Introduction
Steel grid plate is also called steel grid plate, grid plate is
made of flat steel in accordance with a certain distance and cross
bar arrangement, and welded into a kind of steel products with
square grid in the middle, steel grid plate is generally made of
carbon steel, hot dip galvanized appearance, can play a role in
preventing oxidation.It can also be made of stainless steel.As a
new material and product, steel grating plate is being used more
and more widely. Its superior performance and good cost performance
show its application prospect.
Steel Grating PlateSpecifications
Product Name | Steel grating |
Material | Low carbon steel / Stainless steel |
Grade | CN: Q235, Q345, USA: A36, UK: 43A |
Standard | CN: YB/T4001-1998, USA: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988,
JJS |
Certification | CE, GOST, ISO9001, ISO14001, HSE |
Bearing bar size | 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4...
75X8, 100X8mm, etc |
Bearing bar pitch | 20,25,30,32.5,34.3,40,50,60,62,65mm |
Bearing bar type | Plain, Serrated (tooth-like), I bar (I section), Serrated-I |
Cross bar size | 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar) |
Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc. |
Panel size | 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,6400x1000, as request |
Surface treatment | Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder
coated, pickling, electrolytic polishing, or as customers’
requirement. |
According to the different types of flat steel, the steel grid is
mainly divided into the following three types, their respective
characteristics are as follows:
Plane type: Plane type steel grille plate is the most widely used
steel grille plate, mainly used for platforms, walkways, all kinds
of trench cover, step plate, etc.
Tooth type: Compared with the flat steel grille plate, the
anti-skid effect of the steel grille plate is better.
I-shaped: Compared with the flat steel grille plate, I-shaped steel
grille plate has the characteristics of light weight and more
economy without greatly reducing the load capacity.
Steel Grating Plate Application
According to the different types of flat steel, the steel grid is
mainly divided into the following three types, their respective
characteristics are as follows:
Plane type: Plane type steel grille plate is the most widely used
steel grille plate, mainly used for platforms, walkways, all kinds
of trench cover, step plate, etc.
Tooth type: Compared with the flat steel grille plate, the
anti-skid effect of the steel grille plate is better.
I-shaped: Compared with the flat steel grille plate, I-shaped steel
grille plate has the characteristics of light weight and more
economy without greatly reducing the load capacity.
Steel Grating Plate Advantages
1, the installation of the stepping plate is very simple, do not
need complex installation;
2, ventilation, lighting, heat dissipation, explosion-proof,
anti-slip performance is good;
3, high strength, light structure, long;
4, durable appearance, beautiful surface gloss;
5, maintenance is very simple, prevent accumulation of dirt.
Package delivery:
Delivery when will we have a professional inspectors to check the
quality of the product is unqualified, such as qualified will paste
the qualified product certificate, and then fixed by shipping
packaging, packaging with the steel plate on the metal tray, and
then fixed with metal packing tape, finally wrapped by plastic film
packaging, general each pallet packing 1-2 tons of cargo, in order
to convenient for unloading and storage after the arrival of the
goods. The unqualified products will be recalled by our quality
inspector.
Pre-sale service:
After the customer orders, we will have professional technical
personnel to contact with the customer, in order to meet the
customer's technical inquiry and production schedule.
After-sales:
After the goods are shipped, we will have professional technical
personnel to docking with customers, so that when the goods arrive,
there will be unloading problems, storage and installation
problems. Our technical personnel will reply online within 24
hours. If there is a problem, we will docking within 2 hours and
help customers solve the problem within 5 hours.
