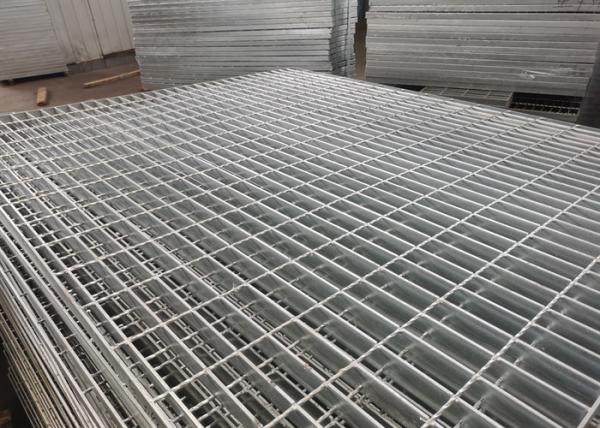

Silver Q235 Stainless Steel Floor Grating Hot Dip Galvanized High
Strength

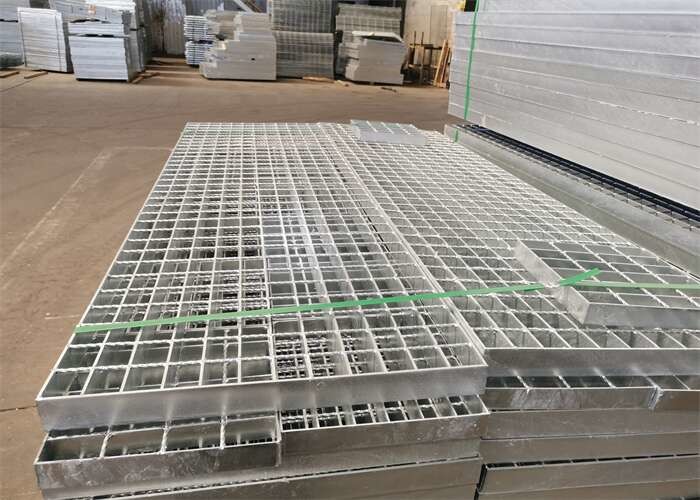

Q235 Hot Dip Galvanized Steel Structure Platform Steel Grating
Platform Steel Grating Product Introduction
Platform steel grid plate is also called platform steel grid plate,
platform grid plate, is made of flat steel in accordance with a
certain distance and cross bar arrangement, and welded into a kind
of steel products with a square grid in the middle, mainly used to
do the ditch cover plate, steel structure platform plate, steel
ladder step plate, etc.
The bar is generally made of twisted square steel.
Platform steel plate is generally made of carbon steel, hot dip
galvanized surface, can play a role in preventing oxidation.
It can also be made of stainless steel.
The steel grid has the properties of ventilation, lighting, heat
dissipation, anti-skid, explosion proof and so on.
Platform steel grid is an extremely wide range of applications of
steel grid products, are generally used in steel structure or
cement structure platform.
It is mainly used for various platforms in factories, workshops,
mining and ports. It is beautiful and easy to install. It is a new
type of building product.
People often say that hot dip galvanized steel grid platform
corridor is the platform of the steel grid.
The production of platform steel grid plate can be made of
hand-welded steel grid plate and pressure welded steel grid plate.
This kind of steel grid plate is widely used in various fields of
industry and has strong resistance to surface impact. In
particular, the steel grid plate with the bar spacing of 50mm has a
strong ability to resist lateral impact.
Platform Steel Grating Product Specifications
| Steel grating standard |
| Steel grating Standard | Steel Standard | Galvanizing Standard |
| China Standard | YB/T 4001.1-2007 | GB700-88 | GB/T 13912-2002 |
| USA Standard | ANSI/NAAMM(MBG531) | ASTM(A36) | ASTM(123) |
| U.K Standard | BS4592 | BS4360(43A) | BS729 |
| Australia Standard | AS1657 | AS3679 | AS1650 |
Specification of Steel Grating:
| series | Bearing Bar Pitch (center to center) | Cross Bar Pitch | Bearing Bar (Load Bar) Specifications(width x thickness) |
| 20*3 | 25*3 | 32*3 | 40*3 | 20*5 | 25*5 |
1
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| 3 | 60 | 50 | | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
1, flat steel spacing of 30mm steel grid for the industrial field
of the most widely used varieties.In the series of commonly used
steel grates, it has the strongest resistance to surface impact.
2, flat steel spacing of 40mm steel grid for the most economic, the
most portable varieties.In the case of minimum span, it is the most
ideal choice.
Platform Steel Grating Product Application
Steel grid platform is suitable for alloy, building materials,
power stations, boilers, shipbuilding, petrochemical, chemical and
general factory rooms, municipal construction and other industries,
with ventilation and light, anti-skid, strong bearing capacity,
beautiful and durable, easy to clean, installation, is a new
generation of building products.
Platform Steel Grating Product Advantages
1.can be added in the peripheral welding kick plate (side plate),
decorative plate guard plate, installation connector and other
accessories.
2. Flat steel with different specifications of flat steel is used
to wrap the edge, or Angle steel, channel steel, square pipe and so
on.
3. Handles and hinges can be installed on the platform steel grid
plate that needs to be moved or opened frequently.
4, the platform steel grid edge welding standard is: series 1 every
five welding one;Series 2, one for every four welds;Series 3 welds
one per three.The weld shall be a single fillet welding of not less
than 3mm, and the weld length shall be 20mm.
Package delivery:
Delivery when will we have a professional inspectors to check the
quality of the product is unqualified, such as qualified will paste
the qualified product certificate, and then fixed by shipping
packaging, packaging with the steel plate on the metal tray, and
then fixed with metal packing tape, finally wrapped by plastic film
packaging, general each pallet packing 1-2 tons of cargo, in order
to convenient for unloading and storage after the arrival of the
goods. The unqualified products will be recalled by our quality
inspector.
