2 Meters Width Lightweight Walkway Grating Powder Coating Pressure
Welding

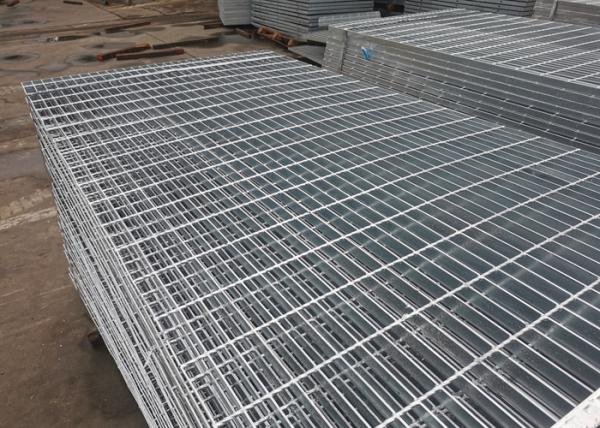

2 Meters Wide Hot Dip Galvanizing Thickening Platform Steel Grating
Platform Steel Grating Product Introduction
Platform steel grid plate is also called platform steel grid plate,
platform grid plate, is made of flat steel in accordance with a
certain distance and cross bar arrangement, and welded into a kind
of steel products with square grid in the middle, mainly used to do
drain cover plate, steel structure platform plate, steel ladder
step plate, etc.
The bar is generally made of twisted square steel.
Platform steel plate is generally made of carbon steel, hot dip
galvanized surface, can play a role in preventing oxidation.
It can also be made of stainless steel.
The steel grid has the properties of ventilation, lighting, heat
dissipation, anti-skid, explosion proof and so on.
Platform Steel Grating Product Specifications
Bearing bar pitch | 30mm or customized |
Height | 20-100mm |
Cross bar pitch | 50mm, 100mm or customized |
Cross bar Diameter | 6mm, 8mm |
Thickness | 2mm-6mm |
Width | 1m, 1.5m or customized |
Length | within 3m |
According to the welding method, it can be divided into: pressure
welding type platform steel grid plate, embedded type platform
steel grid plate, through the lock type platform steel grid plate
and through the welding type platform steel grid plate.
The shape of the side surface of the load flat steel can be divided
into: flat type steel grid plate, tooth type steel grid plate and
"engineering" type steel grid plate, etc
According to its use can be divided into: general purpose steel
grid plate and special purpose steel grid plate such as: ditch
cover plate, step plate and so on.
Platform Steel Grating Product Application
Steel grid platform is suitable for alloy, building materials,
power stations, boilers, shipbuilding, petrochemical, chemical and
general factory rooms, municipal construction and other industries,
with ventilation and light, anti-skid, strong bearing capacity,
beautiful and durable, easy to clean, installation, is a new
generation of building products.
Platform Steel Grating Product Advantages
1. can be added in the peripheral welding kick plate (side plate),
decorative plate guard plate, installation connector and other
accessories.
2. Flat steel with different specifications of flat steel is used
to wrap the edge, or Angle steel, channel steel, square pipe and so
on.
3. Handles and hinges can be installed on the platform steel grid
plate that needs to be moved or opened frequently.
4, the platform steel grid edge welding standard is: series 1 every
five welding one;Series 2, one for every four welds;Series 3 welds
one per three.The weld shall be a single fillet welding of not less
than 3mm, and the weld length shall be 20mm.
Package delivery:
Delivery when will we have a professional inspectors to check the
quality of the product is unqualified, such as qualified will paste
the qualified product certificate, and then fixed by shipping
packaging, packaging with the steel plate on the metal tray, and
then fixed with metal packing tape, finally wrapped by plastic film
packaging, general each pallet packing 1-2 tons of cargo, in order
to convenient for unloading and storage after the arrival of the
goods. The unqualified products will be recalled by our quality
inspector.
