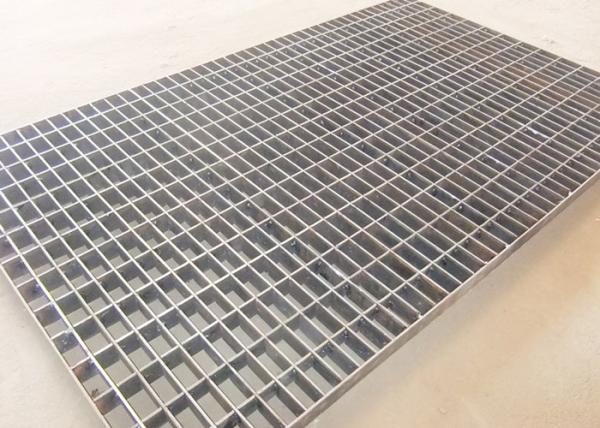

Galvanized Catwalk Steel Grating For Oil Platform
Anti-Skid Galvanized Grille Plate For Oil Platform Catwalk Steel
Grating
Catwalk Steel Grating Introduction
Catwalk Steel Grating is also called platform steel grid, platform grid plate, is a kind
of steel products with flat steel in accordance with a certain
spacing and cross bar, and welded into the middle with a square
grid, mainly used to do drain cover plate, steel structure platform
plate, steel ladder step plate and so on. The bar is generally made
of twisted square steel. Platform steel grid plate is a very widely
used steel grid products in recent years, this kind of steel grid
plate is the most widely used in various fields of industry, the
surface impact has the strongest resistance, especially the bar
spacing of 50mm steel grid plate has a strong ability to resist
lateral impact. It is mainly used in factories, workshops, mining,
ports of all kinds of platforms can be selected, beautiful style,
convenient installation, is a new generation of building products.
Catwalk Steel Grating Specifications
| Material | Low carbon, Middle carbon,stainless steel ,Q 235 |
| Bearing bar type | Flat bar ,serrated bar ,I bar,etc |
| Bearing bar size (loading bar size) | 15,20,25,30,33,38,40,50,60,80 mm,etc |
| Cross bar pitch | 24 to 200 mm |
| Cross bar size | 6*6,8*8,10*10,12*12 mm, etc. |
| Surface treatment | Hot dipped galvanized ,painted,self -color ,etc |
| Grating standard | YB/T4001.1-2007 ANSI/NAAMM(MBG531-88) BS4592-1987 AS1657-1985 |
| Feature | Fine appearance,anti-corrosive,simple installation ,lightweight
,high load,anti-skid,prevent dirt
deposition,ventilation,anti-explosion |
| Application | Floor walkway,industrial platform ,stair tread,metal ceiling |
| Package | Pallets in containers packed by steel strap and worthy sea shipping
or according to the customers' requirements |
| Product capacity | 5 days for 200 ton |
Catwalk Steel Grating Application
Has been widely used in all walks of life both at home and abroad,
mainly used for industrial platform, staircase pedal, banister,
channel floor, railway bridge service, high tower platform, the
drain cover, manhole covers, road barrier, three-dimensional
parking lot, organs, schools, factories, enterprises and
institutions, the stadium fence, garden villa, also can be used as
a residence outside the window, balcony guardrail, highway, rail
barrier, etc.
Catwalk Steel Grating Advantages
Chemical and general industrial plant, municipal construction and
other industries, with ventilation, light, anti-skid, strong
bearing capacity, beautiful and durable, easy to clean, easy to
install and other advantages.
The method of welding fixation is:
the fillet welding with the length of the weld not less than 20mm
and the height not less than 3mm on the first flat steel at each
corner of the steel grid plate.
When ordering mounting clips, please specify the type, quantity and
material required.
The installation can be fixed by welding and clamping.
Welding fixation is suitable for permanent parts that do not need
to be disassembled, such as the platform around the equipment, and
the installation clip has the characteristics of not destroying the
zinc layer and convenient disassembly.
Mounting clamps are suitable for all series of steel grates, which
are composed of upper clamps, lower clamps and M8 bolts.
The method of fixing the installation clip is: each plate adopts at
least four sets of installation clip, and it is best to install
several more supports on the larger plate span.
Stainless steel mounting clips are available to meet customer
requirements.
Package delivery:
Delivery when will we have a professional inspectors to check the
quality of the product is unqualified, such as qualified will paste
the qualified product certificate, and then fixed by shipping
packaging, packaging with the steel plate on the metal tray, and
then fixed with metal packing tape, finally wrapped by plastic film
packaging, general each pallet packing 1-2 tons of cargo, in order
to convenient for unloading and storage after the arrival of the
goods. The unqualified products will be recalled by our quality
inspector.
