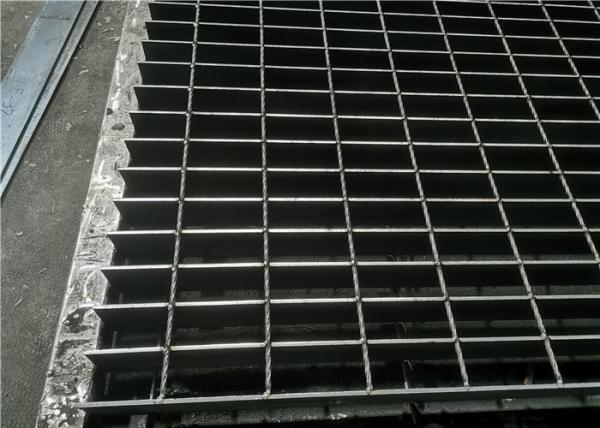

25x5 Galvanized Metal Catwalk Flooring Q345 Industrial Platform
25 x 5 Open Safety Hot Dip Galvanized Catwalk Steel Grating
Catwalk Steel Grating Introduction
Grid grid, also known as steel grid plate, grid grid is made of
flat steel in accordance with a certain distance and cross bar
(twisted square steel, square steel, round steel, flat steel,
etc.), and welded into a kind of steel products with a square grid
in the middle, steel grid plate is mainly used to do ditch cover
plate, steel structure platform plate, steel ladder step plate,
etc.
The bar is generally made of twisted square steel.
The steel grid is generally made of carbon steel, and its
appearance is hot dip galvanized, which can prevent oxidation.
It can also be made of stainless steel.
The steel grid has the properties of ventilation, lighting, heat
dissipation, anti-skid, explosion proof and so on.
Catwalk Steel Grating Specifications
| Material | iron,stainless steel, hot dip galvanized |
| Outline size | 1000*2000 mm or customized |
| Thickness | 3-8 mm |
| Type | Plain Bar Grating, Serrated Bar Grating,Plug gratingetc. |
| Surface treatment | Hot dip galvanizing |
| Bearing bar pitch | 25mm,30mm,35mm,40mm etc |
| Cross bar pitch | 50mm,76mm,100mm etc |
| Mesh shape | Round, square, diamond, rectangle, ellipse, hexagon, pattern, etc. |
| Surface treatment | 1. Powder Coating 2. polishing |
| Features | High strength, light structure, high bearing. |
Catwalk Steel Grating Construction
Construction is simple: in the pre-installed support with bolt clip
fixed or welding fixed, one can be completed. Time saving: no
on-site reprocessing, quick installation. Durable: hot dip zinc
anticorrosive treatment before delivery, strong impact resistance
and heavy pressure ability. Modern style: beautiful appearance,
standard design, ventilation and light, give people an overall
smooth modern feeling. Light structure: less material, light
structure, and easy to hoist. Anti-sedimentation: no rain, snow,
ice and dust.
Catwalk Steel Grating Application
Steel grates are suitable for alloys, building materials, power
plants, boilers. Shipbuilding.
Petrochemical, chemical and general industrial plants, municipal
construction and other industries, with ventilation, light,
anti-skid, strong bearing capacity, beautiful and durable, easy to
clean, easy installation and other advantages.
Steel plate has been widely used in all walks of life both at home
and abroad, mainly used for industrial platform, staircase pedal,
banister, channel floor, railway bridge service, high tower
platform, the drain cover, manhole covers, road barrier,
three-dimensional parking lot, organs, schools, factories,
enterprises and institutions, the stadium fence, garden villa, also
can be used as a residence outside the window, balcony guardrail,
highway, rail barrier, etc.
The method of welding fixation is:
the fillet welding with the length of the weld not less than 20mm
and the height not less than 3mm on the first flat steel at each
corner of the steel grid plate.
When ordering mounting clips, please specify the type, quantity and
material required.
The installation can be fixed by welding and clamping.
Welding fixation is suitable for permanent parts that do not need
to be disassembled, such as the platform around the equipment, and
the installation clip has the characteristics of not destroying the
zinc layer and convenient disassembly.
Mounting clamps are suitable for all series of steel grates, which
are composed of upper clamps, lower clamps and M8 bolts.
The method of fixing the installation clip is: each plate adopts at
least four sets of installation clip, and it is best to install
several more supports on the larger plate span.
Stainless steel mounting clips are available to meet customer
requirements.
Package delivery:
Delivery when will we have a professional inspectors to check the
quality of the product is unqualified, such as qualified will paste
the qualified product certificate, and then fixed by shipping
packaging, packaging with the steel plate on the metal tray, and
then fixed with metal packing tape, finally wrapped by plastic film
packaging, general each pallet packing 1-2 tons of cargo, in order
to convenient for unloading and storage after the arrival of the
goods. The unqualified products will be recalled by our quality
inspector.
