5mm Thick Aluminum Catwalk Grating 65mm Galvanised Driveway Grates
5mm thick carbon steel hot dip galvanized outdoor Catwalk Steel
Grating
Galvanised Driveway Grates Introduction
Catwalk Steel Grating is also called steel grid plate, grid plate
is made of flat steel in accordance with a certain distance and
cross bar arrangement, and welded into a kind of steel products
with square grid in the middle, mainly used to do the trench cover
grid plate is generally made of carbon steel, hot dip galvanized
appearance, can play a role in preventing oxidation.
It can also be made of stainless steel.
Steel grille plate has ventilation, lighting, heat dissipation,
anti-skid, explosion-proof and other properties.
The production standard of steel grille plate, (China for the 2007
new steel grille standard YB/T4001.1-2007 standard;
America, Britain, Australia and New Zealand also have their own
standards.
Steel standard according to GB700-88,GB1220-92. Plate, steel
structure platform plate, steel ladder step plate, etc.
The bar is generally made of twisted square steel.
Catwalk Steel Grating Specifications
Number of bearing bars | Nominal Width(mm) |
Bearing bar pitch at 12.5(mm) | Bearing bar pitch at 30(mm) | Bearing bar pitch at 30.16(mm) | Bearing bar pitch at 40(mm) | Bearing bar pitch at 60(mm) |
4 | 65 | 95 | 108 | 125 | 185 |
5 | 85 | 125 | 142 | 165 | 245 |
6 | 105 | 155 | 177 | 205 | 305 |
7 | 125 | 185 | 211 | 245 | 365 |
8 | 145 | 215 | 245 | 285 | 425 |
9 | 165 | 245 | 279 | 325 | 485 |
10 | 185 | 275 | 314 | 365 | 545 |
11 | 205 | 305 | 348 | 405 | 605 |
12 | 225 | 335 | 382 | 445 | 665 |
13 | 245 | 365 | 417 | 485 | 725 |
14 | 265 | 395 | 451 | 525 | 785 |
15 | 285 | 425 | 485 | 565 | 845 |
16 | 305 | 455 | 520 | 605 | 905 |
17 | 325 | 485 | 554 | 645 | 965 |
18 | 345 | 515 | 588 | 685 | 1025 |
Catwalk Steel Grating Construction
Construction is simple: in the pre-installed support with bolt clip
fixed or welding fixed, one can be completed. Time saving: no
on-site reprocessing, quick installation. Durable: hot dip zinc
anticorrosive treatment before delivery, strong impact resistance
and heavy pressure ability. Modern style: beautiful appearance,
standard design, ventilation and light, give people an overall
smooth modern feeling. Light structure: less material, light
structure, and easy to hoist. Anti-sedimentation: no rain, snow,
ice and dust.
Catwalk Steel Grating Application
It is widely used in the fields of platform, walkway, trestle,
trench cover, manhole cover, ladder, fence and so on, such as
petroleum chemical industry, electric power, tap water, sewage
treatment, port and wharf, building decoration, shipbuilding,
self-propelled parking lot, municipal engineering, sanitation
engineering.
The method of welding fixation is:
the fillet welding with the length of the weld not less than 20mm
and the height not less than 3mm on the first flat steel at each
corner of the steel grid plate.
When ordering mounting clips, please specify the type, quantity and
material required.
The installation can be fixed by welding and clamping.
Welding fixation is suitable for permanent parts that do not need
to be disassembled, such as the platform around the equipment, and
the installation clip has the characteristics of not destroying the
zinc layer and convenient disassembly.
Mounting clamps are suitable for all series of steel grates, which
are composed of upper clamps, lower clamps and M8 bolts.
The method of fixing the installation clip is: each plate adopts at
least four sets of installation clip, and it is best to install
several more supports on the larger plate span.
Stainless steel mounting clips are available to meet customer
requirements.

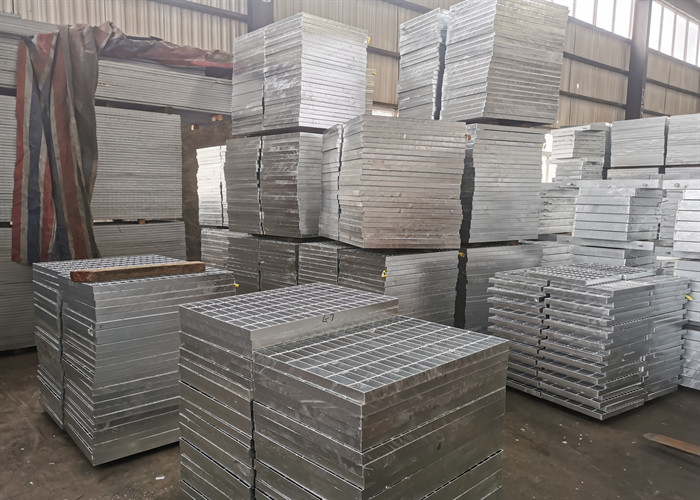

Package delivery:
Delivery when will we have a professional inspectors to check the
quality of the product is unqualified, such as qualified will paste
the qualified product certificate, and then fixed by shipping
packaging, packaging with the steel plate on the metal tray, and
then fixed with metal packing tape, finally wrapped by plastic film
packaging, general each pallet packing 1-2 tons of cargo, in order
to convenient for unloading and storage after the arrival of the
goods. The unqualified products will be recalled by our quality
inspector.
