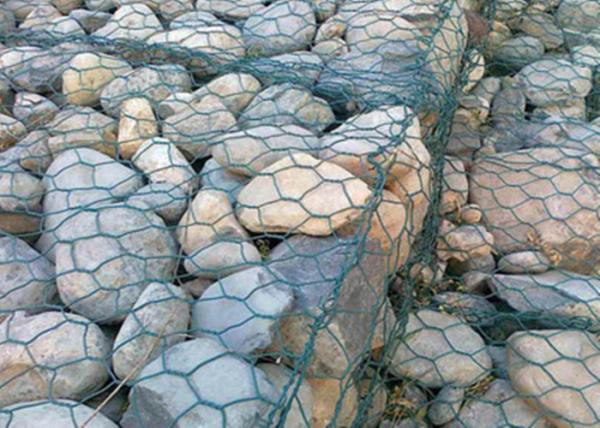

PVC Coated Antiseptic Gabion Welded Wire Mesh Hot Galvanized Dark
Green
Dark Green PVC Antiseptic River Stone Diamond Cage Gabion Wire Mesh
Gabion Wire Mesh Introduction:
Gabion Wire Mesh is also known as double twisted mesh, gabion mesh,
honeycomb retaining wall.
It is made of high quality low carbon steel wire, and the line at
the edge of the frame is generally thicker than the hexagonal wire.
The tensile strength of the steel wire is not less than 420MPa, and
the diameter of the steel wire ranges from 1.8mm to 4.0mm.
The stone cage net is very strong and durable.
Gabion Wire Mesh steel wire surface is usually also using hot dip
galvanized or PVC/PE protection, galvanized protective layer
thickness can be made according to customer requirements, generally
in more than 250g/m2, so that it has excellent corrosion resistance
and durable quality.
PVC/PE protective layer will greatly increase the service life of
the network, and through the choice of different colors, so that it
can be integrated with the surrounding natural environment.
Gabion Wire Mesh specificaiton:
| 60 mm x 80 mm, 80 mm x 100 mm, 100 mm x 120 mm, 120 mm x 150 mm,
160 mm x 210 mm, 140 mm x 180 mm, 180 mm x 220 mm |
| |
| |
| |
| |
| |
| |
Common specifications are 2m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x
0.5m, 4m x 1m x 0.5m. The external dimensions can be customized
within the standard range. |
The size of the cage can be selected according to the actual
situation.Most common mesh 60×80mm, 80×100mm,
200×250mm.Specification: 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m,
2m x 1m x 0.5m, 4m x 1m x 0.5m, 4m x 1m x 0.5m, can also be
produced according to customer requirements.Surface protection
conditions are hot dip galvanized, galvanized aluminum alloy,
coated with PVC and so on.
Gabion wire mesh various characteristics:
1, gabion box control and guide the rivers and flood 2, guest area
and diversion dam spillway dam 3, stone cage net pad rockfall
protection 4, bing forward to prevent water erosion 5, stone cage
net bean | grid network bridge protection 6, 7 solid soil bin net
structure, stone cage net coastal defense project 8, 9, stone cage
| stone cage net port engineering, Penn retaining wall, stone cage
net 10 road protection.
Gabion wire mesh application:
One, control and guide the river and flood: gabion mesh can make
the riverbed river bank to get natural protection, effectively
prevent the flow of water scour the riverbank damage, causing
flooding, leading to a lot of loss of life and property, a lot of
soil erosion.
Two, channels, canals, riverbed: natural river transformation and
artificial channel excavation, gabion mesh can play an effective
optimal protection on the riverbank or riverbed, it can also
control the flow of water, prevent water loss, especially in
environmental protection and water quality maintenance, with
optimal effect.
Three, revetment slope: stone cage gabion mesh structure
application and the river shore and slope foot protection is the
most successful case, it gives full play to the advantages of
ecological grid, to achieve the ideal effect that other methods can
not achieve.
