Toothed Non Skid 32*3mm Stair Treads Steel Grating Hot Dip
Galvanized

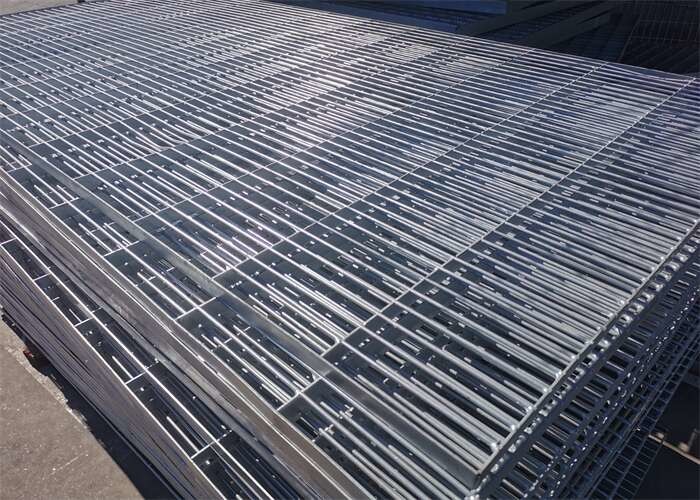

Hot Dip Galvanized Toothed Non-Skid 32*3mm Steel Plate Stair Treads
Steel Grating
Steel Grate Stair Treads Introduction
A brief introduction to hot dip galvanized steel grid:
Hot dip galvanized steel grid is generally made of carbon steel,
hot dip galvanized surface, can play a role in preventing
oxidation.
Because the anticorrosion performance of spray painted steel grid
plate is far inferior to hot dip galvanized steel grid plate, and
the cost of stainless steel grid plate is too high, usually most of
the hot dip galvanized steel grid plate.
Hot dip galvanized steel grid plate is welded at each intersection
of the bearing flat steel and the cross bar, and the steel grid
plate is fixed by pressure resistance welding, which is called
pressure welded steel grid plate.
Twisted square steel (twist steel) is usually used for cross bars
of pressure welded steel grates.
Reference from: Standard YB/T4001.1-2007 for steel grates.
Two, hot dip galvanized steel grid type:
Hot dip galvanized steel grid plate according to the manufacturing
process that welding galvanized grid plate and pressure lock hot
dip galvanized steel grid plate;
According to the surface shape of hot-dip galvanized steel grid, it
is divided into toothed galvanized steel grid, planar galvanized
steel grid, I-type galvanized steel grid and composite galvanized
steel grid.
Steel Grate Stair Treads Specifications
| Grating Type | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Process technical | Machine press welding,hand welding |
| Material | Steel,Stainless steel 304 /316,Aluminum 6063 T5/T6 |
Bearing Bar (width*thickness) | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10…..100 x10mm etc; |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40,
41.25, 60, 80mm etc |
| Cross Bar Size | 6x6, 8x8mm (twisted bar or round bar) |
| Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100,120mm |
| Surface treatment | Hot dip galvanized (HDG),Painting,Untreated,Powder coated |
| Application | Trench cover,drainage cover,walkway,platform,stair step |
| Lead time | 15-45 days |
Steel Grate Stair Treads Application
Passages, ventilation fence, mooring dock and pier, frame and
frame, pedestrian overpass, drilling platform, transmission
corridor bridge, bridge footpath, trench cover, ventilation window,
railway across the aisle, manhole and lighting, anti-theft doors
and Windows, airport fence, trash rack, wall fence, paint (mainly
automotive paint and furniture paint), storage shelves, equipment,
sidewalks, billboards, livestockRing fence, equipment safety fence,
pipe gallery trestle, scaffold, ship landing pedal, washing rack,
truck top walkway, platform, filter grid, sun shading box, ladder
pedal, Marine work vessel, feeding machine walkway, etc.
Package delivery:
Delivery when will we have a professional inspectors to check the
quality of the product is unqualified, such as qualified will paste
the qualified product certificate, and then fixed by shipping
packaging, packaging with the steel plate on the metal tray, and
then fixed with metal packing tape, finally wrapped by plastic film
packaging, general each pallet packing 1-2 tons of cargo, in order
to convenient for unloading and storage after the arrival of the
goods. The unqualified products will be recalled by our quality
inspector.
Pre-sale service:
After the customer orders, we will have professional technical
personnel to contact with the customer, in order to meet the
customer's technical inquiry and production schedule.
After-sales:
After the goods are shipped, we will have professional technical
personnel to docking with customers, so that when the goods arrive,
there will be unloading problems, storage and installation
problems. Our technical personnel will reply online within 24
hours. If there is a problem, we will docking within 2 hours and
help customers solve the problem within 5 hours.
