ISO9001 Step Board Galvanized Steel Grating Walkway Pressure
Resistance Welding
Heavy Duty Galvanized Steel Grating Walkway Trench Cover Stair
Treads Steel Grating

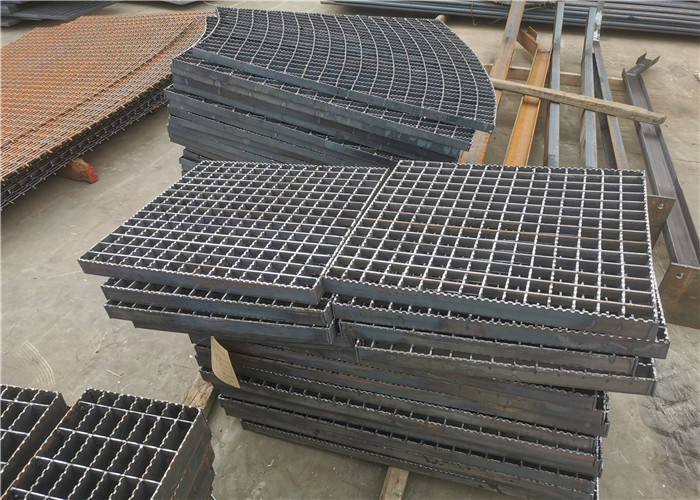

Steel Grate Stair Treads Introduction
Stair steel grid board also called stair step board.
Stair steel grid plate is made of steel grid plate processing
(steel grid plate is made of flat steel in accordance with a
certain distance and cross bar arrangement, and welded into the
middle with a square grid of steel products).
The surface of the product is generally treated with hot dip
galvanizing and electric galvanizing.
(1) According to the installation of the stair steel grid plate, it
is divided into the welded fixed ladder pedal and the bolt fixed
ladder pedal.
The welded and fixed ladder pedal is the steel grid plate, and the
bolted ladder pedal needs to add 65X5mm flat steel to the steel
grid plate as the side plate.
(2) according to the anti-skid requirements of the stair steel grid
plate, it can be divided into two kinds: the ladder pedal with
front guard plate (pattern plate or bar steel) and the ladder pedal
without front guard plate.
T325/30/100(For step width greater than 215mm but not greater than
305mm) For safety reasons, it is recommended that the customer use
the step with front guard.
Steel Grate Stair Treads Specifications
| Common specification of Steel grating galvanised walkway grating |
| Material Standard | ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304,
Mild steel & Low carbon steel, etc |
Bearing Bar
(width*thickness) | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10…..100 x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'',
1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40,
41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Surface treatment | untreated(black), hot-dipped galvanized ,powder coated,
electroplate, painting or as per customers’ requirement. |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Packing | 1) LCL(less than one container load): packed with plastic film then
on the pallets
2) FCL(full container load): nude packing
3) Other special package :according to customers' requirements. |
| Payment Term | T/T,L/C, Paypal, Western Union, MoneyGram, Credit Card ,D/A,D/P,
Trade assurance |
T1 to T4 30mm spacing 125, 155, 185, 215, 245, 275, 305
T1 to T2 40mm spacing 125, 165, 205, 245, 285, 325
T3 to T4 40mm spacing 115, 155, 195, 235, 275, 315
T1 to T2 60mm spacing 185, 245, 305
T1 to T2 60mm spacing 155, 215, 275
Steel Grate Stair Treads Application
Steel Grate Stair Treads used for industrial platform stairs,
ladder pedals, banister, channel floor, railway bridge service,
high tower platform, the drain cover, manhole covers, road barrier,
three-dimensional parking lot, organs, schools, factories,
enterprises and fence, playground, garden villa, also can be used
as a residence outside the window, balcony guardrail, highway, rail
barrier, etc.
Steel Grate Stair Treads Advantages
It has the characteristics of high strength and light structure:
because the product adopts the solid grid pressure welding
technology, it has the high bearing capacity, and is easy to
hoisting and so on;Beautiful appearance, durable;The standard
surface of steel grid plate is treated with hot dip zinc to make it
have good anticorrosion ability, and the surface is glossy and
beautiful.Good ventilation, lighting, heat dissipation,
explosion-proof and skid proof performance;Prevent accumulation of
dirt.
Package delivery:
Delivery when will we have a professional inspectors to check the
quality of the product is unqualified, such as qualified will paste
the qualified product certificate, and then fixed by shipping
packaging, packaging with the steel plate on the metal tray, and
then fixed with metal packing tape, finally wrapped by plastic film
packaging, general each pallet packing 1-2 tons of cargo, in order
to convenient for unloading and storage after the arrival of the
goods. The unqualified products will be recalled by our quality
inspector.
Pre-sale service:
After the customer orders, we will have professional technical
personnel to contact with the customer, in order to meet the
customer's technical inquiry and production schedule.
After-sales:
After the goods are shipped, we will have professional technical
personnel to docking with customers, so that when the goods arrive,
there will be unloading problems, storage and installation
problems. Our technical personnel will reply online within 24
hours. If there is a problem, we will docking within 2 hours and
help customers solve the problem within 5 hours.
