River Slide Treatment Gabion Wall Wire Mesh Zinc Aluminum Alloy
80mm*100mm
Zinc-Aluminum Alloy Diamond Net For River Slide Treatment Gabion
Wire Mesh
Gabion Wire Mesh Introduction:
Galvanized stone cage net is an ecological grid structure.
The stone cage net has high corrosion resistance, high strength,
ductility of low carbon steel wire or PVC coated steel wire above
the use of machinery woven, stone cage cage is made of stone cage
cage.
The edge line diameter of the stone cage net is generally greater
than the diameter of the net line.
The double stranded part is generally double stranded to ensure
that the metal coating and PVC coating of the stranded part of the
steel wire are not damaged.
Galvanized for a molding production, in addition to the cover
plate, the side plate, end plate, and the bottom plate are
inseparable.
Length/Width Tolerance (±5%) Height Tolerance (±5%), the interior
is separated into independent units every 1 m by partitions.

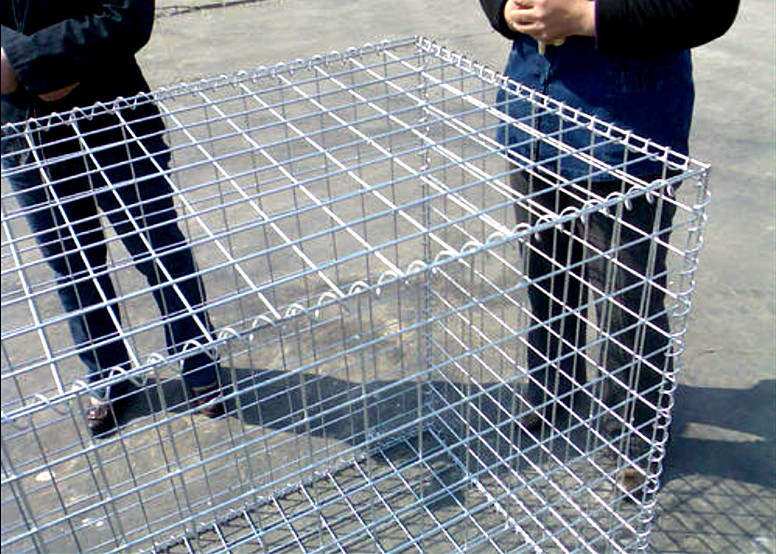

The assembly method, the cover plate, the side plate, the end
plate, the bottom plate is assembled into the cage separately, each
part is bound with spiral steel wire winding, all the side wire of
the cage is used to strengthen the strength of the stone cage.
Gabion Wire Mesh specificaiton:
|
| | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | |
Custom sizes are also available |
The wire of the stone cage net is the main body of the wire
generally 2.0-4.0mm, the diameter of the edge is greater than the
diameter of the wire, is woven or wound fixed in the direction of
the length of the wire;
The end wire diameter is larger than the wire diameter, is woven or
wound fixed on the edge of the width of the grid, the end wire is
generally the same as the side wire.
The mesh of the stone cage net is formed by mechanical stranded
hexagonal hole, the general mesh is 60*80, 80*100, 100*120,
120*150mm.
Gabion wire mesh various characteristics:
1, gabion box control and guide the rivers and flood 2, guest area
and diversion dam spillway dam 3, stone cage net pad rockfall
protection 4, bing forward to prevent water erosion 5, stone cage
net bean | grid network bridge protection 6, 7 solid soil bin net
structure, stone cage net coastal defense project 8, 9, stone cage
| stone cage net port engineering, Penn retaining wall, stone cage
net 10 road protection.
Gabion wire mesh application:
One, control and guide the river and flood: gabion mesh can make
the riverbed river bank to get natural protection, effectively
prevent the flow of water scour the riverbank damage, causing
flooding, leading to a lot of loss of life and property, a lot of
soil erosion.
Two, channels, canals, riverbed: natural river transformation and
artificial channel excavation, gabion mesh can play an effective
optimal protection on the riverbank or riverbed, it can also
control the flow of water, prevent water loss, especially in
environmental protection and water quality maintenance, with
optimal effect.
Three, revetment slope: stone cage gabion mesh structure
application and the river shore and slope foot protection is the
most successful case, it gives full play to the advantages of
ecological grid, to achieve the ideal effect that other methods can
not achieve.
