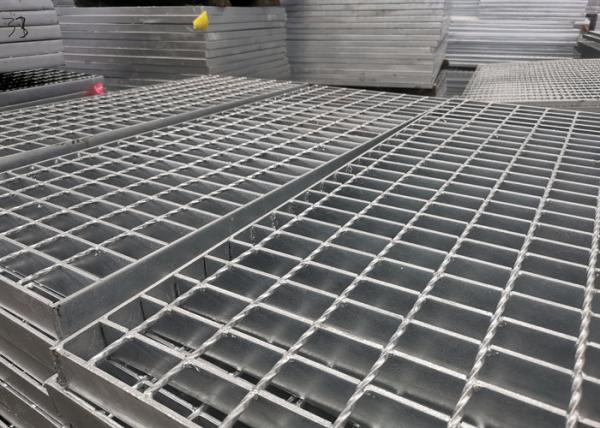

High Strength Platform Steel Grating 100mm Skid Proof Galvanised
Walkway Mesh
Hot Dip Galvanized School Outdoor Stairs Skid Proof Platform Steel
Grating
Platform Steel Grating Product Introduction
Platform Steel Grating is a very wide range of steel grille plate
products in recent years, this kind of grille plate is the most
widely used in various fields of industry, the surface impact has
the strongest resistance, especially the bar spacing of 50mm steel
grille plate has a strong ability to resist lateral impact.It is
mainly used in factories, workshops, mining, ports of all kinds of
platforms can be selected, beautiful style, convenient
installation, is a new generation of building products.
Platform Steel Grating Product Specifications
| Cross Rod Pitch | load Bar Pitch | load Bar Specification(Width×Thickness) |
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 |
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Cross Rod Pitch | load Bar Pitch | load Bar Specification(Width×Thickness) |
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
The shape of the side surface of the load flat steel can be divided
into: flat type steel grid plate, tooth type steel grid plate and
"engineering" type steel grid plate, etcAccording to the welding method, it can be divided into: pressure
welding type platform steel grid plate, embedded type platform
steel grid plate, through the lock type platform steel grid plate
and through the welding type platform steel grid plate.
According to its use can be divided into: general purpose steel
grid plate and special purpose steel grid plate such as: ditch
cover plate, step plate and so on.
Platform Steel Grating Product Application
Platform Steel Grating is suitable for alloy, building materials,
power stations, boilers, shipbuilding, petrochemical, chemical and
general factory rooms, municipal construction and other industries,
with ventilation and light, anti-skid, strong bearing capacity,
beautiful and durable, easy to clean, installation, is a new
generation of building products.Can be added in the peripheral
welding kick plate (side plate), decorative plate guard plate, the
installation of fittings and other accessories.Flat steel with
different specifications can be used to pack the edge, or Angle
steel, channel steel, square pipe, etc.Handles and hinges can also
be installed on steel grids that need to be moved or opened
frequently.
Platform Steel Grating Product Advantages
1.can be added in the peripheral welding kick plate (side plate),
decorative plate guard plate, installation connector and other
accessories.
2. Flat steel with different specifications of flat steel is used
to wrap the edge, or Angle steel, channel steel, square pipe and so
on.
3. Handles and hinges can be installed on the platform steel grid
plate that needs to be moved or opened frequently.
4, the platform steel grid edge welding standard is: series 1 every
five welding one;Series 2, one for every four welds;Series 3 welds
one per three.The weld shall be a single fillet welding of not less
than 3mm, and the weld length shall be 20mm.

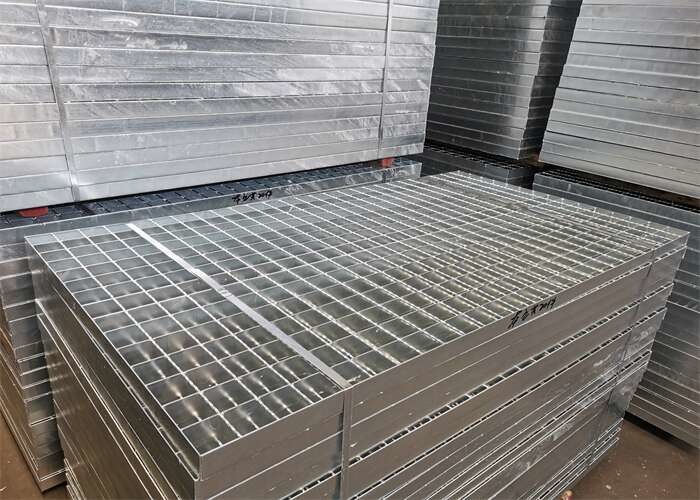

Package delivery:
Delivery when will we have a professional inspectors to check the
quality of the product is unqualified, such as qualified will paste
the qualified product certificate, and then fixed by shipping
packaging, packaging with the steel plate on the metal tray, and
then fixed with metal packing tape, finally wrapped by plastic film
packaging, general each pallet packing 1-2 tons of cargo, in order
to convenient for unloading and storage after the arrival of the
goods. The unqualified products will be recalled by our quality
inspector.
