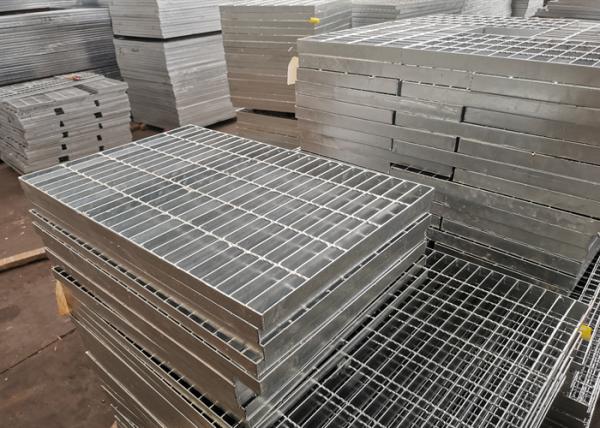

Driveway Platform Steel Grating Walkway 120mm High Zinc Coating
Hot Dip Galvanized Coal Mine Steel Driveway Platform Steel Grating
Platform Steel Grating Product Introduction
Platform steel grid plate is also called platform steel grid plate,
platform grid plate, is made of flat steel in accordance with a
certain distance and cross bar arrangement, and welded into a kind
of steel products with a square grid in the middle, mainly used to
do the ditch cover plate, steel structure platform plate, steel
ladder step plate, etc. The bar is generally made of twisted square
steel. Platform steel plate is generally made of carbon steel, hot
dip galvanized surface, can play a role in preventing oxidation. It
can also be made of stainless steel. The steel grid has the
properties of ventilation, lighting, heat dissipation, anti-skid,
explosion proof and so on. Pressure welding steel grid plate is
made of load flat steel and cross bar according to a certain
distance by adopting 200 tons of hydraulic resistance welding
automation equipment welding into the original plate, after
cutting, opening, wrapping and other processes and products
customer requirements. Load flat steel spacing: the center distance
between two adjacent load flat steel, commonly used 30MM, 40MM and
60MM three. Rod spacing: the center spacing of two adjacent bars is
usually 50MM, 100MM, two kinds.
Platform Steel Grating Product Specifications
| Common Specification of Steel Grating |
| Remarks: Special Material, High Zinc Coating and New Style can be
Customized. |
| Material Standard | ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc |
Bearing Bar (Width x Thickness) | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'',
1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40,
41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Surface Treatment | Untreated(black), Hot-dipped galvanized, Powder coated,
Electroplate, Painting or as per customers' requirement. |
| Grating Style | Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar |
| Packing | (1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of
the steel grid, for high strength; (3) Steel Pallet: Traditional export packing. |
| Payment Term | T/T, L/C, Western Union, Credit Card, Alibaba Trade Assurance |
| Product Name: High Quality Heavy Duty Hot Dip Galvanized Steel
Grating Walkway Price |
The shape of the side surface of the load flat steel can be divided
into: flat type steel grid plate, tooth type steel grid plate and
"engineering" type steel grid plate, etcAccording to the welding method, it can be divided into: pressure
welding type platform steel grid plate, embedded type platform
steel grid plate, through the lock type platform steel grid plate
and through the welding type platform steel grid plate.
According to its use can be divided into: general purpose steel
grid plate and special purpose steel grid plate such as: ditch
cover plate, step plate and so on.
Platform Steel Grating Product Application
Sidewalk platform is widely used in oil drilling platform, chemical
plant, power plant operating machinery steel platform, waterworks
aisle platform, sewage treatment plant drainage ditch cover plate,
steel platform of ports, building decoration, shipbuilding
pedestrian platform, self-contained parking lot, municipal
engineering, environmental sanitation engineering areas such as the
platform, walkway, pier, trench cover, manhole covers, ladders,
fences, etc.
Platform Steel Grating Product Advantages
1.can be added in the peripheral welding kick plate (side plate),
decorative plate guard plate, installation connector and other
accessories.
2. Flat steel with different specifications of flat steel is used
to wrap the edge, or Angle steel, channel steel, square pipe and so
on.
3. Handles and hinges can be installed on the platform steel grid
plate that needs to be moved or opened frequently.
4, the platform steel grid edge welding standard is: series 1 every
five welding one;Series 2, one for every four welds;Series 3 welds
one per three.The weld shall be a single fillet welding of not less
than 3mm, and the weld length shall be 20mm.
Package delivery:
Delivery when will we have a professional inspectors to check the
quality of the product is unqualified, such as qualified will paste
the qualified product certificate, and then fixed by shipping
packaging, packaging with the steel plate on the metal tray, and
then fixed with metal packing tape, finally wrapped by plastic film
packaging, general each pallet packing 1-2 tons of cargo, in order
to convenient for unloading and storage after the arrival of the
goods. The unqualified products will be recalled by our quality
inspector.
