Hot Dipped Galvanized 8FT Diamond Chain Link Fence Environmental
Friendly
PVC Coated 8FT Green Metal Chain Link Wire Mesh Fence
Chain Link Fence Introduction:
Chain link fence is also called diamond wire mesh, produced with
quality hot dipped galvanized wire or PVC coated wire.
The link fence can resist the corrosive and ultraviolet radiation
very strongle. The fence obtain very strong powers to resist the
concussion.
Chain Link Fence is normally used for protecting fencing and
security fencing on playground, construction site, highway side,
courtyard, public place, places of recreation and so on.
There're galvanized chain link fence and PVC coated chain link
fence.
.
Chain Link Fence specificaiton:
Common specifications:
Hole: 3mm-10cm
Silk warp: 2.0 mm-6.0 mm
Width: 1m-5m
Length: 3m-20m
| Opening | 1" | 1.5" | 2" | 2-1/4" | 2-3/8" | 2-1/2" | 2-5/8" | 3" | 4" |
| 25mm | 40mm | 50mm | 57mm | 60mm | 64mm | 67mm | 75mm | 100mm |
| Wire diameter | 18# - 13# | 16# - 8 | 18#-7# |
| 1.2 - 2.4mm | 1.6mm - 4.2mm | 2.0mm-5.00mm |
| Length of the roll | 0.50m - 100m(or more) |
| Width of the roll | 0.5m - 5.0m |
| Materials and specifications can be made according to
customers'detailed requirements. |
| PVC coated chain link fence |
| Opening | Wire Gauge | Width | Length |
| Inch | mm | BWG | mm | m | m |
| 1"x1" | 25mmx25mm | BWG13-BWG12 | 2.2mm-3.0mm | 0.5-5m | 1.0m-50m |
| 1-1/2"x1-1/2" | 40mmx40mm | BWG13-BWG12 | 2.2mm-3.0mm | 0.5-5m | 1.0m-50m |
| 2"x2" | 50mmx50mm | BWG12-BWG9 | 2.2mm-3.6mm | 0.5-5m | 1.0m-50m |
| 2-3/8"x2-3/8" | 60mmx60mm | BWG13-BWG9 | 2.2mm-3.6mm | 0.5-5m | 1.0m-50m |
| 2-1/2"x2-1/2" | 63mmx63mm | BWG12-BWG9 | 2.6mm-3.5mm | 0.5-5m | 1.0m-50m |
| 3"x3" | 75mmx75mm | BWG12-BWG9 | 3.0mm-3.6mm | 0.5-5m | 1.0m-50m |
Remarks: 1. Special sizes are available upon request.
2. Packing: by pvc with both end. Customer's packing is available
upon request. |
| Galvanized chain link fence |
| OPENING | WIRE GAUGE | WIDTH | LENGTH |
| 1'' | BWG11.12.13.14.15.16.17.18 | 0.5M-5M | 1.0M-50M |
| 1.5'' | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 2'' | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 2.25'' | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 2.5 | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 2.375'' | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 3'' | BWG8,9,10,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 4'' | BWG8,9,10,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| Remarks:1.Special sizes are available upon request. 2.Packing:by
PVC with both end or as customer's requirement. |

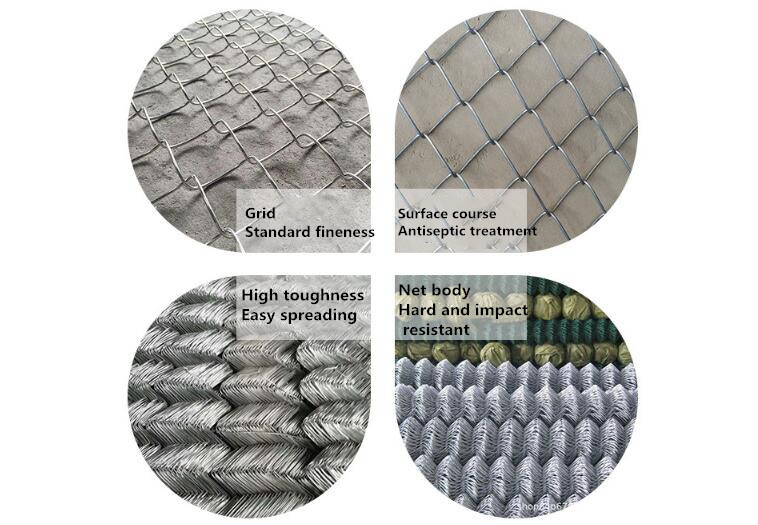

Product process
Excellent product technology meticulous work focus on quality
guardrail products
processing and production after-sales worry free
Chain Link Fence Application
Chain link fence is widely used as speed way, protection, safe
guard on machinery, building wall, construction site, poultry
fence, playing field, greening fence, waterways and residence
safeguard, etc.
Chain Link Fence Advantages
1.It's strong because of the steel framework, concrete footers, and
interlocked wire.
2.It's versatile because it can accommodate grade changes, has
different gauges/grades, can be vinyl coated.
3.It is durable because of the galvanized or vinyl coating
processes in manufacturing for natural elements.
Package delivery:
Delivery when will we have a professional inspectors to check the
quality of the product is unqualified, such as qualified will paste
the qualified product certificate, and then fixed by shipping
packaging, packaging with the steel plate on the metal tray, and
then fixed with metal packing tape, finally wrapped by plastic film
packaging, general each pallet packing 1-2 tons of cargo, in order
to convenient for unloading and storage after the arrival of the
goods. The unqualified products will be recalled by our quality
inspector.
Pre-sale service:
After the customer orders, we will have professional technical
personnel to contact with the customer, in order to meet the
customer's technical inquiry and production schedule.
After-sales:
After the goods are shipped, we will have professional technical
personnel to docking with customers, so that when the goods arrive,
there will be unloading problems, storage and installation
problems. Our technical personnel will reply online within 24
hours. If there is a problem, we will docking within 2 hours and
help customers solve the problem within 5 hours.
Why US ?
Anping jiongcan metal products Co., Ltd. main products are: steel
grating, stepping board, welded wire mesh, hook net, guardrail and
related supporting facilities products. The product is novel and
beautiful, no rust, high strength, safe, fast installation.
Products are widely used in urban roads, real estate, development
zones, residential areas, gardens and various enterprises and
institutions of the decoration and beautification and safety
protection engineering. Product design, engineering budget, etc.
are completed by computer, for customers to implement the design,
manufacturing, installation of one-stop service.
Enterprise tenet is: "people-oriented, science and technology
plant, quality, good reputation.". New concept, advanced equipment,
optimized structure, learning advanced management, establishing
perfect management team, implementing humanized management,
providing superior working environment, attracting and cultivating
a strong technical team of workers.
Our company relies on "good timing, good location, and good
people", relies on the hard work of the staff, advanced technology,
excellent technical force, the continuous summary and improvement
of the enterprise itself, maintains a good reputation, and
constantly introduces advanced management concepts and technical
talents to expand the market.
