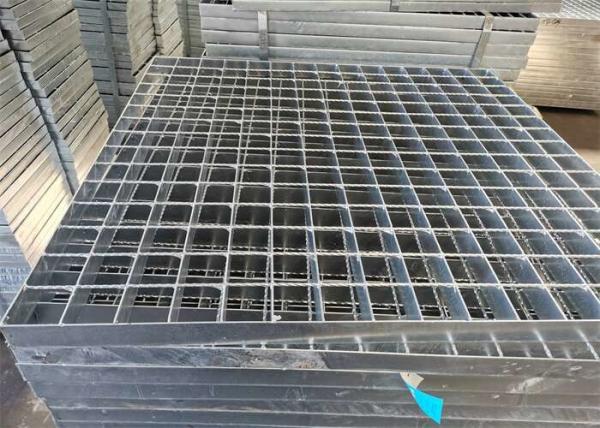

5mm Thick Non Slip Stair Treads Steel Grating
5mm Thick 30mm *100mm Non-Slip Hot Dip Galvanizing Stair Treads
Steel Grating
Steel Grate Stair Treads Introduction
Hot dip galvanized steel grid plate, also known as hot dip
galvanized steel grid plate, is made of low carbon steel flat steel
and twisted square steel horizontal and longitudinal welding grid
building materials.
Hot dip galvanized steel grid has strong impact resistance, strong
corrosion resistance to heavy load capacity, elegant and beautiful,
in the application of steel structure and load-bearing platform has
superior performance;
Higher cost performance, so that hot dip galvanized steel grid is
widely used in the old and new roadbed paving ditch road
construction projects.
Steel Grate Stair Treads Specifications
Bearing bar ( width x thickness) | 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6,
75x10 etc I Bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
Bearing bar pitch | 12.5, 15, 20, 22, 25, 30, 32.5, 34, 35, 38, 40, 50, 60 ,80mm, etc |
Twisted cross bar pitch | 30, 50, 60, 76, 80, 100, 101.6, 120mm, etc |
Surface treatment | untreated, hot dipped galvanized, powder coated, painting etc |
Greating style | Plain, Smooth, Serrated( teeth), I bar |
Remarks: other size also can be customized according to customer's
request |
1, hot dip galvanized steel grating plate (flat steel spacing 30mm)
flat steel spacing 30mm hot dip galvanized steel grating plate for
the industrial field more widely used varieties.
In the series of commonly used hot dip galvanized steel grates, it
has a strong resistance to surface impact.
Common specifications are: 255/30/100;
325/30/100, etc.
2, hot dip galvanized steel grating plate (flat steel spacing 40mm)
flat steel spacing 40mm hot dip galvanized steel grating plate is
more economic, very portable varieties.
In the context of small span, it is an ideal choice.
Common specifications are: 253/40/50;
303/40/100, etc
3, hot dip galvanized steel grating plate (flat steel spacing 60mm)
flat steel spacing 60mm bar for 50mm hot dip galvanized steel
grating plate is suitable for mining and mining to solve the
problem of mineral splashing on the surface of the plate, often
designated for mining processing plants.
Common specifications are: 505/60/60;
405/60/100, etc
4, hot dip galvanized steel grid plate (heavy duty) by flat steel
width 65mm - 200mm thick 5mm - 20mm and other welded hot dip
galvanized steel grid plate for the heavy-duty hot dip galvanized
steel grid plate.
It is suitable for large cargo yard, wharf, coal mine road and
bridge, etc. It can carry large truck through.
Common specifications are: 1006/40/50;
655/25/50, etc
Steel Grate Stair Treads Application
Widely used in petrochemical, power plant, water plant, sewage
treatment plant, municipal engineering, sanitation engineering and
other fields of the platform, walkway, trestle, ditch cover,
manhole cover, ladder, fence, guardrail, etc.
Steel Grate Stair Treads Advantages
1. High strength, light weight;
2. Strong anti-corrosion ability, durable;
3. Beautiful appearance, bright surface;
4. No dirt, no rain and snow, no water, self-cleaning, easy to
maintain;
5. Ventilation, lighting, heat dissipation, anti-skid,
explosion-proof;
6. Easy to install and disassemble.
