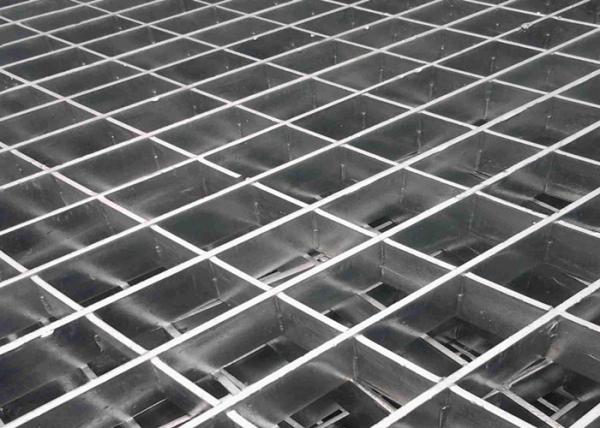

Plain Weave Welded Steel Grating 50x5mm Galvanized Building
Platform
Galvanized building platform square serrated steel bar grating

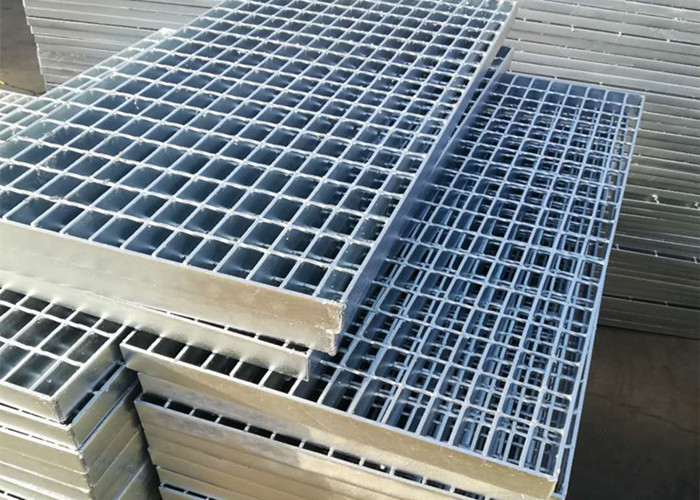

Welded Steel Grating
Welded Steel Grating Introduction
1. Hot dip galvanized steel grid plate is the original plate which
is made of loaded flat steel and horizontal bar arranged according
to a certain distance of longitude and weft, and welded by high
pressure resistance welding machine. After deep processing of
cutting, incision, opening, edge wrapping and other processes, it
becomes the finished product required by customers.
2. Hot dip galvanized steel grating type: according to the
production process is divided into pressure welding, pressure lock
hot dip galvanized steel grating;
According to the surface shape of hot dip galvanized steel grating,
it is divided into: tooth shape, plane type, working type and
compound hot dip galvanized steel grating.
Welded Steel Grating Specifications
item | value non slip metal grating |
Products name | Steel grating |
Surface treatment | Hot Dipped Galvanized |
Weld Way | Welded , Pressure-locked , Swage Locked |
Material | Carbon Steel / Stainless Steel |
Type | Serrated, Plain, I bar grating |
Application | Deck Floor Tree Catwalk Driveway
|
Welded Steel Grating Application:
Hot dip galvanized steel grates are widely used in power
construction, boilers, shipbuilding, petrochemical and general
industrial plants, municipal construction and other industries.
Hot dip galvanized steel grid has the advantages of ventilation and
light transmission, anti-skid, strong bearing capacity, beautiful
and durable, easy to clean, easy to install and so on.
Hot dip galvanized steel grating has been widely used in all walks
of life both at home and abroad, mainly used for industrial
platform, staircase pedal, banister, channel floor, railway bridge
service, high tower platform, the drain cover, manhole covers, road
barrier, three-dimensional parking lot, organs, schools, factories,
enterprises and institutions, the stadium fence, garden villa, also
can be used as a residence outside the window, balcony guardrail,
highway, rail barrier, etc.
Welded Steel Grating Advantages:
1. Features: high strength, light structure: the solid grid
pressure welding structure makes it has the characteristics of high
load, light structure, easy to hoisting and so on;
Beautiful appearance, durable: hot dip zinc surface treatment makes
it has a good anti-corrosion ability, the surface luster is
beautiful;
Good ventilation, lighting, heat dissipation, explosion-proof and
skid proof performance;
Prevent accumulation of dirt.
Welded Steel Grating Process:
The process design of steel grid plate is to arrange the material
according to the geometrical information of the sheet according to
the size of the original plate, and the ultimate goal is to make
the material cutting plan take into account the maximum utilization
rate of the material and higher production efficiency.
The principle of steel grid process collocation mainly has the
following aspects:
1, all the full plate size or more than the full plate size of the
steel grid are in accordance with the length of the priority
collocation, collocation size as little as possible and unified,
length range control in 5-7 meters.
2. A small number of narrow plates can be arranged in order of
width from large to small or from small to large, and then can be
combined together in parallel according to length.
3. When the width overflows, the raw material cross bar is used for
edge welding, instead of welding another plate.
4, double rod welding machine each pressure welding 2 bars, can not
appear odd circumstances.
5, between the board and the board to retain the sawing size, if
not enough need to leave a cross bar.
6, for a set of drawings need to be strictly classified.
If multiple drawings are more than 200 square meters, they need to
be matched together. If less than 200 square meters, it can be
considered to match them with small size drawings.
7, for the special-shaped steel grid, need to consider
decomposition and docking, in order to achieve the most economical
material.
8, for flat steel spacing 60 mm plate can be used 30 mm spacing
comb clip for raw material production.
Welded Steel Grating installation:
The connection mode of steel grid plate is fixed and installed with
buckle connector, which is composed of three parts.
Hot Dip Galvanized Steel Grating Package delivery:
Delivery when will we have a professional inspectors to check the
quality of the product is unqualified, such as qualified will paste
the qualified product certificate, and then fixed by shipping
packaging, packaging with the steel plate on the metal tray, and
then fixed with metal packing tape, finally wrapped by plastic film
packaging, general each pallet packing 1-2 tons of cargo, in order
to convenient for unloading and storage after the arrival of the
goods. The unqualified products will be recalled by our quality
inspector.
Pre-sale service:
After the customer orders, we will have professional technical
personnel to contact with the customer, in order to meet the
customer's technical inquiry and production schedule.
