Steel Structure Pedestrian Passage Skid Resistance Welded Steel
Grating

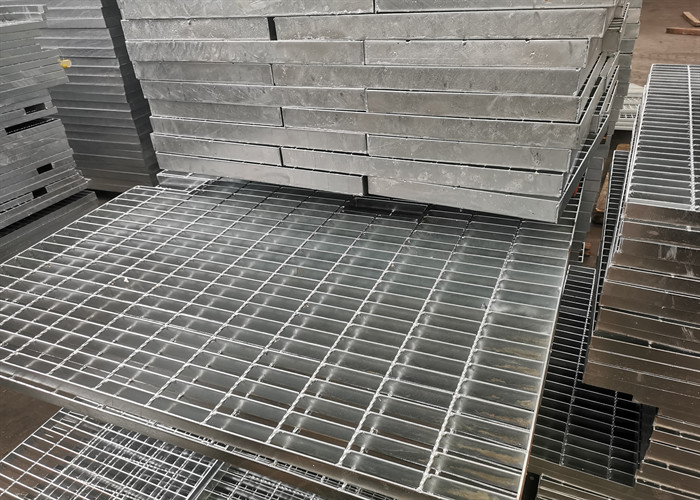

Welded Steel Grating Introduction
Steel grid plate is made of negative flat steel and twist steel
according to a certain distance of warp and weft arrangement,
welded into the original plate, after cutting edge, grinding,
cutting mouth surface hot dip galvanizing and other processes and
further processing into customer requirements of the finished
products.
Its characteristics are: high load-bearing capacity, light weight
and easy to hoisting and so on;
Beautiful appearance, breathable and durable: hot dip zinc surface
treatment makes it has quite good anti-corrosion ability, surface
luster is beautiful;
Good ventilation, lighting, heat dissipation, explosion-proof and
skid proof performance;
Prevent accumulation of dirt.
Widely used in, power plant, water plant, sewage treatment plant,
petrochemical municipal engineering, sanitation engineering and
other fields of steel grid platform.
Welded Steel Grating Specifications
| Place of Origin | Hebei China (Mainland) |
| Brand Name | FD |
| Model Number | FDPT140609 |
| Bearing bar | 30mm(height)x3mm(thickness) |
| Bearing bar pitch | 30 |
| Cross bar | 6x6 |
| Cross bar pitch | 50mm,100mm |
| Surface treatment | Hot dip galvanized |
| Flat bar type | Plain |
| Material standard | Low carbon steel |
| Galvanizing standard | US: ASTM (A123) |
| Steel grating standards | USA: ANSI/NAAMM (MBG 531-88) |
| Certification | CE,SGS,ISO90001. |
| Usage & Performance | Industrial platform, flooring and walkway, traffic, steel structure |
| Main market | USA,Australia, Japan, etc. |
| Packing | 1.Pallet in containers.
2.According to your packing requirements. |
| MOQ | 2/Tons |
| Supply Ability | 500 Tons/month |
| Payment Terms | T/T,L/C |
| Delivery Time | within 15 days after your deposit or L/C at sight |
| Port of delivery | FOB Tianjin |
| Sample time | 7 days |
(2) Center spacing of crossbar: 100mm for series 1 and 50mm for
series 2. Other specifications can be customized.
(3) flat steel: material is Q235A or stainless steel, ordinary
plane type, anti-skid tooth type and section I type. Commonly used
specifications are 20*5, 25*5, 25*3, 32*5, 32*5, 40*5, 40*3, 50*5,
65*5, 75*6, 100*8, 100*10, etc.
(4) Bar: round steel, twisted square steel, square steel or
hexagonal steel made of Q235A or 304 stainless steel. Twisted
square steel is made of coil by square die drawing and twisted, its
common specifications are 5*5, 6*6, 8*8mm and so on.
Welded Steel Grating Application:
Widely used in petrochemical, electric power, water, sewage
treatment, port wharf, building decoration, shipbuilding,
self-propelled parking lot, municipal engineering, sanitation and
other fields of platform, walkway, trestle, ditch cover, manhole
cover, ladder, fence, factory construction, etc.
Steel grid bar plate, steel grid plate instead of guardrail do,
guardrail also known as fence fence, fence, so "steel grid plate
instead" also known as steel grid plate. Because of its strong
performance compared to the fence is very strong, so with steel
grid plate do grid plate for specific requirements customized,
generally rarely used! The price is 2 times higher than ordinary
guardrail.
Welded Steel Grating Advantages:
Light weight, high strength, large bearing capacity, economical
material, ventilation and light, modern style, beautiful
appearance, anti-skid safety, easy to clean, easy to install,
durable characteristics.
Welded Steel Grating Process:
The process design of steel grid plate is to arrange the material
according to the geometrical information of the sheet according to
the size of the original plate, and the ultimate goal is to make
the material cutting plan take into account the maximum utilization
rate of the material and higher production efficiency.
The principle of steel grid process collocation mainly has the
following aspects:
1, all the full plate size or more than the full plate size of the
steel grid are in accordance with the length of the priority
collocation, collocation size as little as possible and unified,
length range control in 5-7 meters.
2. A small number of narrow plates can be arranged in order of
width from large to small or from small to large, and then can be
combined together in parallel according to length.
3. When the width overflows, the raw material cross bar is used for
edge welding, instead of welding another plate.
4, double rod welding machine each pressure welding 2 bars, can not
appear odd circumstances.
5, between the board and the board to retain the sawing size, if
not enough need to leave a cross bar.
6, for a set of drawings need to be strictly classified.
If multiple drawings are more than 200 square meters, they need to
be matched together. If less than 200 square meters, it can be
considered to match them with small size drawings.
7, for the special-shaped steel grid, need to consider
decomposition and docking, in order to achieve the most economical
material.
8, for flat steel spacing 60 mm plate can be used 30 mm spacing
comb clip for raw material production.
Welded Steel Grating installation:
The connection mode of steel grid plate is fixed and installed with
buckle connector, which is composed of three parts.
Hot Dip Galvanized Steel Grating Package delivery:
Delivery when will we have a professional inspectors to check the
quality of the product is unqualified, such as qualified will paste
the qualified product certificate, and then fixed by shipping
packaging, packaging with the steel plate on the metal tray, and
then fixed with metal packing tape, finally wrapped by plastic film
packaging, general each pallet packing 1-2 tons of cargo, in order
to convenient for unloading and storage after the arrival of the
goods. The unqualified products will be recalled by our quality
inspector.
Pre-sale service:
After the customer orders, we will have professional technical
personnel to contact with the customer, in order to meet the
customer's technical inquiry and production schedule.
